導線截面：0.5～1.5mm2(AWG22～16 ) 最大電流：1max＝19A
Size of cable: 0.5-1.5mm2(American standar 22-16) Max.Current=19A

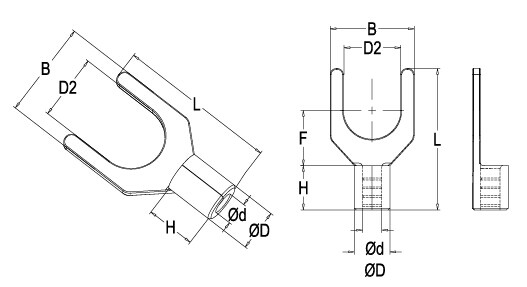

型號 | 尺寸 | |||||||
| 美制螺栓號 | 螺栓口直徑 | B | L | F | H | φD | φd | |
| D2 | mm | mm | mm | mm | mm | mm | ||
| Y1.25-3 | #4 | 3.2mm | 5.7 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 |
| YS1.25-3.5 | #6 | 3.7mm | 5.7 | 16.0 | 6.5 | |||
| YL1.25-3.5 | #6 | 3.7mm | 6.4 | 16.0 | 6.5 | |||
| YS1.25-4 | #8 | 4.3mm | 6.4 | 16.0 | 6.5 | |||
| YM1.25-4 | #8 | 4.3mm | 7.2 | 16.0 | 6.5 | |||
| YL1.25-4 | #8 | 4.3mm | 8.1 | 16.0 | 6.5 | |||
| YS1.25-5 | #10 | 5.3mm | 8.1 | 16.0 | 6.5 | |||
| YL1.25-5 | #10 | 5.3mm | 9.5 | 16.0 | 6.5 | |||
| YS1.25-6 | 1/4 | 6.5mm | 9.5 | 16.0 | 6.5 | |||
| YL1.25-6 | 1/4 | 6.5mm | 12.0 | 22.0 | 11.0 | |||
導線截面：1.5～2.5mm2(AWG16～14) 最大電流：lmax＝27A
Size of cable: 1.5-2.5mm2(American standar 16-14) Max.Current=27A
型號 | 尺寸 | |||||||
| 美制螺栓號 | 螺栓口直徑 | B | L | F | H | D | φd | |
| D2 | mm | mm | mm | mm | mm | mm | ||
Y2-3 | #4 | 3.2mm | 5.7 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 |
| YS2-3.5 | #6 | 3.7mm | 5.7 | 16.0 | 6.5 | |||
| YL 2-3.5 | #6 | 3.7mm | 6.0 | 16.0 | 6.5 | |||
| YS 2-4 | #8 | 4.3mm | 6.4 | 16.0 | 6.5 | |||
| YM2-4 | #8 | 4.3mm | 7.2 | 16.0 | 6.5 | |||
| YL2-4 | #8 | 4.3mm | 8.1 | 16.0 | 6.5 | |||
| YS2-5 | #10 | 5.3mm | 8.1 | 16.0 | 6.5 | |||
| YL2-5 | #10 | 5.3mm | 9.5 | 16.0 | 6.5 | |||
| YS2-6 | 1/4 | 6.5mm | 9.5 | 16.0 | 6.5 | |||
| YL2-6 | 1/4 | 6.5mm | 12.0 | 22.0 | 11.0 | |||
導線截面：2.5～4mm2(AWG14～12) 最大電流：lmax＝37A
Size of cable: 2.5-4mm2(American standar 14-12) Max.Current=37A
型號 | 尺寸 | |||||||
| 美國螺栓號 | 螺栓口直徑 | B | L | F | H | φD | φd | |
| D2 | mm | mm | mm | mm | mm | mm | ||
| Y3.5-3 | #4 | 3.2mm | 5.7 | 18.3 | 7.0 | 6.0 | 5.0 | 3.0 |
| Y3.5-4 | #8 | 4.3mm | 8.0 | 18.3 | 7.0 | |||
| Y3.5-5 | #10 | 5.3mm | 8.0 | 18.3 | 7.0 | |||
| Y3.5-6 | 1/4 | 6.5mm | 12.0 | 21.5 | 12.1 | |||
導線截面：4～6mm2(AWG12～10) 最大電流：lmax=48A
Size of cable: 4-6mm2(American standar 12-10) Max.Current=48A
型號 | 尺寸 | |||||||
| 美制螺栓號 | 螺栓口直徑 | B | L | F | H | φD | φd | |
| D2 | mm | mm | mm | mm | mm | mm | ||
| Y5.5-3.5 | #6 | 3.7mm | 8.3 | 19.5 | 7.5 | 6.8 | 5.6 | 3.4 |
| Y5.5-3.5 | #6 | 3.7mm | 8.3 | 18.5 | 7.0 | |||
| YS5.5-4 | #8 | 4.3mm | 8.3 | 19.5 | 7.5 | |||
| YL5.5-4 | #8 | 4.3mm | 9.0 | 18.2 | 7.5 | |||
| Y5.5-5 | #10 | 5.3mm | 9.0 | 18.2 | 7.5 | |||
| YS5.5-6 | 1/4 | 6.5mm | 9.0 | 18.2 | 7.5 | |||
| YL5.5-6 | 1/4 | 6.5mm | 12.0 | 25.5 | 12.0 | |||
| Y5.5-8 | 5/16 | 8.4mm | 14.0 | 24.5 | 11.5 | |||
導線截面：6～10mm2(AWG8) 最大電流：lmax＝62A
型號 | 尺寸 | |||||||
| 美制螺栓號 | 螺栓口直徑 | B | L | F | H | φD | φd | |
| D2 | mm | mm | mm | mm | mm | mm | ||
| Y8-4 | #8 | 4.3mm | 9.0 | 20.8 | 8.1 | 8.5 | 7.2 | 4.5 |
| Y8-5 | #10 | 5.3mm | 9.0 | 20.8 | 8.1 | |||
| Y8-6 | 1/4 | 6.5mm | 12.0 | 23.8 | 9.2 | |||
| Y8-8 | 5/16 | 8.4mm | 13.8 | 25.4 | 10.7 | |||
| Y8-10 | 3/8 | 10.5mm | 15.9 | 25.4 | 10.7 | |||
導線截面：10～16mm2(AWG6) 最大電流：lmax＝88A
型號 | 尺寸 | |||||||
| 美制螺栓號 | 螺栓口直徑 | B | L | F | H | φD | φd | |
| D2 | mm | mm | mm | mm | mm | mm | ||
| Y14-4 | #8 | 4.3mm | 11.0 | 25.5 | 10.7 | 10.5 | 9.0 | 5.8 |
| Y14-5 | #10 | 5.3mm | 11.0 | 25.5 | 10.7 | |||
| Y14-6 | 1/4 | 6.5mm | 11.0 | 25.5 | 10.7 | |||
| Y14-8 | 5/16 | 8.4mm | 13.8 | 28.5 | 10.7 | |||
| Y14-10 | 3/8 | 10.5mm | 15.9 | 28.5 | 10.7 | |||
導線截面：16～25mm2(AWG4) 最大電流：lmax=115
型號 | 尺寸 | |||||||
| 美制螺栓號 | 螺栓口直徑 | B | L | F | H | φD | φd | |
| D2 | mm | mm | mm | mm | mm | mm | ||
| Y22-5 | #10 | 5.3mm | 11.0 | 27.7 | 9.5 | 12.0 | 11.5 | 7.7 |
| Y22-6 | 1/4 | 6.5mm | 11.0 | 27.7 | 9.5 | |||
| Y22-8 | 5/16 | 8.4mm | 16.5 | 33.5 | 13.5 | |||
| Y22-10 | 3/8 | 10.5mm | 16.5 | 33.5 | 13.5 | |||
導線截面：35～50mm2(AWG2)最大電流：lmax＝160A
型號 | 尺寸 | |||||||
| 美制螺栓號 | 螺栓口直徑 | B | L | F | H | φD | φd | |
| D2 | mm | mm | mm | mm | mm | mm | ||
| Y38-6 | 1/4 | 6.5mm | 15.9 | 35.0 | 13.5 | 14.0 | 13.3 | 9.4 |
| Y38-8 | 5/16 | 8.4mm | 15.9 | 35.0 | 13.5 | |||
| Y38-10 | 3/8 | 10.5mm | 15.9 | 35.0 | 13.5 | |||
| Y38-12 | 1/2 | 13.0mm | 19.0 | 39.0 | 15.5 | |||
