產品特點:采用優質亞光電鍍,防銹時間大大加長,無鋒利部位；配套華展端子鉗即可壓緊電線,接線美觀,
國際認證:歐盟RoHS環保認證,歐洲CE認證.
產品特性:品質優良,壓緊后不斷裂松開,-40度耐熱至85度正常使用.
使用方法:將電線剝開外皮,穿入端子后銅管
使用方法:將電線剝開外皮,穿入端子后銅管
| 型 號 |

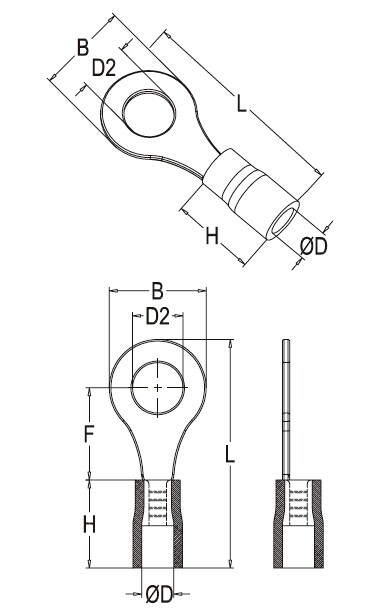

AWG/mm2 最大電流/包裝 | Dia. of bolt | B | L | F | H | φD | 顏色 |
| Item No. | 螺栓口直徑 D2 | mm | mm | mm | mm | mm | Color | |
| RF1.25-3 | AWG:22-16 平方:0.5-1.5 電流:19A 包裝:1000PCS | 3.2mm | 5.7 | 17.8 | 4.95 | 10 | 4.3 | 紅 |
| RFS1.25-3.5 | 3.7mm | 5.7 | 17.8 | 4.95 | ||||
| RFM1.25-3.5 | 3.7mm | 6.6 | 20.1 | 6.3 | ||||
| RFL1.25-3.5 | 3.7mm | 8 | 21.5 | 7 | ||||
| RFS1.25-4 | 4.3mm | 6.6 | 20.1 | 6.3 | ||||
| RFL1.25-4 | 4.3mm | 8 | 21.5 | 7 | ||||
| RF1.25-5 | 5.3mm | 8 | 21.5 | 7 | ||||
| RFL1.25-5 | 5.3mm | 9.8 | 23 | 8.5 | ||||
| RFS1.25-6 | 6.5mm | 9.8 | 23 | 8.5 | ||||
| RF1.25-6 | 6.5mm | 11.6 | 27.5 | 11.1 | ||||
| RF1.25-8 | 8.4mm | 11.6 | 27.5 | 11.1 | ||||
| RF1.25-10 | 10.5mm | 13.6 | 31.6 | 13.9 | ||||
| RF1.25-12 | 13.0mm | 19.2 | 36 | 16.5 | ||||
| RF2-3 | AWG:16-14 平方:1.5-2.5 電流:27A 包裝:1000PCS | 3.2mm | 6.6 | 17.8 | 4.3 | 10 | 4.9 | 藍 |
| RFS2-3.5 | 3.7mm | 6.6 | 17.8 | 4.3 | ||||
| RFM2-3.5 | 3.7mm | 6.6 | 21 | 7 | ||||
| RFL2-3.5 | 3.7mm | 8.5 | 22.5 | 7.75 | ||||
| RFS2-4 | 4.3mm | 6.6 | 19.5 | 6.5 | ||||
| RFL2-4 | 4.3mm | 8.5 | 22.5 | 7.75 | ||||
| RFS2-5 | 5.3mm | 8.5 | 22.5 | 7.75 | ||||
| RFL2-5 | 5.3mm | 9.5 | 22.5 | 7.25 | ||||
| RF2-6 | 6.5mm | 12 | 27.6 | 11 | ||||
| RF2-8 | 8.4mm | 12 | 27.6 | 11 | ||||
| RF2-10 | 10.5mm | 14 | 31 | 13.9 | ||||
| RF2-12 | 13.0mm | 19.2 | 36.5 | 16.5 | ||||
| RF3.5-4 |
AWG:12-14 平方:2.5-4 電流:37A 包裝:500PCS | 4.3mm | 8 | 24.5 | 7.7 | 13.5 | 5.8 | 黑 |
| RFS3.5-5 | 5.3mm | 8 | 24.5 | 7.7 | ||||
| RFL3.5-5 | 5.3mm | 12 | 27.9 | 7.7 | ||||
| RF3.5-6 | 6.5mm | 12 | 27.9 | 7.7 | ||||
| RF3.5-8 | 8.4mm | 15 | 32 | 13.5 | ||||
| RF3.5-10 | 10.5mm | 15 | 32 | 13.5 | ||||
| RF5.5-3.5 |
AWG:12-10 平方:4-6 電流:48A 包裝:500PCS | 3.7mm | 7.2 | 21.4 | 5.9 | 13.5 | 6.7 | 黃 |
| RFS5.5-4 | 4.3mm | 7.2 | 21.4 | 5.9 | ||||
| RFL5.5-4 | 4.3mm | 9.5 | 26.5 | 8.3 | ||||
| RF5.5-5 | 5.3mm | 9.5 | 26.5 | 8.3 | ||||
| RF5.5-6 | 6.5mm | 12 | 31 | 13 | ||||
| RF5.5-8 | 8.4mm | 15 | 33.7 | 13.7 | ||||
| RF5.5-10 | 10.5mm | 15 | 33.7 | 13.7 | ||||
| RF5.5-12 | 13.0mm | 19.2 | 38.1 | 16 | ||||
| RF8-3 |
AWG:8 平方:6-10 電流:62A 包裝:100PCS | 3.7mm | 10 | 30 | 17.5 | 4.5 | 紅 | |
| RF8-4 | 4.3mm | 10 | 30 | |||||
| RF8-5 | 5.3mm | 10 | 30 | |||||
| RF8-6 | 6.4mm | 11 | 31.5 | |||||
| RF8-8 | 8.4mm | 14 | 36 | |||||
| RF8-10 | 10.5mm | 18 | 39.5 | |||||
| RF14-5 |
AWG:6 平方:10-16 電流:88A 包裝:100PCS | 5.3mm | 11 | 37.5 | 23 | 5.9 | 紅/藍 | |
| RF14-6 | 6.4mm | 11 | 37.5 | |||||
| RF14-8 | 8.4mm | 14 | 43 | |||||
| RF14-10 | 10.5mm | 18 | 45 | |||||
| RF14-12 | 13.0mm | 18 | 45 |
