材料：外部金屬為不銹鋼304 ,密封件材料為改性橡膠
防護等級：在規定的卡口范圍之內，防護等級可以達到IP66
溫度范圍：-40℃到100℃,短時間可以達到120℃
材料：外部金屬為不銹鋼304 ,密封件材料為改性橡膠
防護等級：在規定的卡口范圍之內，防護等級可以達到IP66
溫度范圍：-40℃到100℃,短時間可以達到120℃

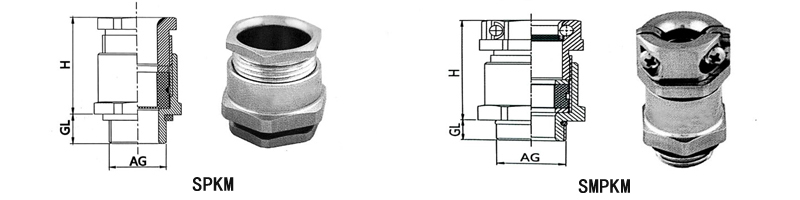

產品規格
|
型號 Item No . |
型號 |
卡口范圍 Clamping range mm |
螺紋規格 mm |
螺紋長度 GL mm |
高度 H SPKM/SMPKM mm |
扳手尺寸 Wrench size mm |
包裝 Std.Pkg |
| SPKM-M/SMPKM-M 公制螺紋 | |||||||
| SPKM-M12x1.5-8 | SMPKM-M12x1.5-8 | 6-8 | M12x1.5 | 6 | 15/22 | 15 | 50 |
| SPKM-M16x1.5-8S | SMPKM-M16x1.5-8S | 6-8 | M16x1.5 | 7 | 17/24 | 18 | 50 |
| SPKM-M16x1.5-10 | SMPKM-M16x1.5-10 | 8-10 | M16x1.5 | 7 | 17/24 | 18 | 50 |
| SPKM-M18x1.5-8TS | SMPKM-M18x1.5-8TS | 6-8 | M18x1.5 | 7 | 17/24 | 20 | 50 |
| SPKM-M18x1.5-10S | SMPKM-M18x1.5-10S | 8-10 | M18x1.5 | 7 | 17/24 | 20 | 50 |
| SPKM-M18x1.5-12 | SMPKM-M18x1.5-12 | 10-12 | M18x1.5 | 7 | 18/25 | 20 | 50 |
| SPKM-M20x1.5-14 | SMPKM-M20x1.5-14 | 12-14 | M20x1.5 | 7 | 19.5/26.5 | 24 | 50 |
| SPKM-M25x1.5-18 | SMPKM-M25x1.5-18 | 14-18 | M25x1.5 | 7 | 32.5/42.5 | 30/34 | 20 |
| SPKM-M32x1.5-23 | SMPKM-M32x1.5-23 | 17-23 | M32x1.5 | 8 | 32.5/42.5 | 36/40 | 20 |
| SPKM-M36x2.0-27 | SMPKM-M36x2.0-27 | 22-27 | M36x2.0 | 8 | 35/45 | 45/48 | 10 |
| SPKM-M40x1.5-33 | SMPKM-M40x1.5-33 | 26-33 | M40x1.5 | 9 | 35/47 | 50/55 | 5 |
| SPKM-M50x1.5-41 | SMPKM-M50x1.5-41 | 32-41 | M50x1.5 | 9 | 37/49 | 58/65 | 2 |
| SPKM-M56x2.0-49 | SMPKM-M56x2.0-49 | 40-49 | M56x2.0 | 9 | 40/52 | 65/70 | 2 |
| SPKM-M63x1.5-57 | SMPKM-M63x1.5-57 | 48-57 | M63x1.5 | 10 | 40/52 | 75/80 | 2 |
| SPKM-PG/SMPKM-PG 德制螺紋 | |||||||
| SPKM-PG7-8 | SMPKM-PG7-8 | 6-8 | PG7 | 6 | 15/22 | 15 | 50 |
| SPKM-PG9-8S | SMPKM-PG9-8S | 6-8 | PG9 | 7 | 17/24 | 17 | 50 |
| SPKM-PG9-10 | SMPKM-PG9-10 | 8-10 | PG9 | 7 | 17/24 | 17 | 50 |
| SPKM-PG11-8TS | SMPKM-PG11-8TS | 6-8 | PG11 | 7 | 17/24 | 20 | 50 |
| SPKM-PG11-10S | SMPKM-PG11-10S | 8-10 | PG11 | 7 | 17/24 | 20 | 50 |
| SPKM-PG11-12 | SMPKM-PG11-12 | 10-12 | PG11 | 7 | 18/25 | 20 | 50 |
| SPKM-PG13.5-14 | SMPKM-PG13.5-14 | 12-14 | PG13.5 | 7 | 19.5/26.5 | 24 | 50 |
