導(dǎo)線截面：0.5～1.5mm2(AWG22～16 ) 最大電流：1max＝19A .包裝1000PCS
Size of cable: 0.5-1.5mm2(American standar 22-16) Max.Current=19A.Package:1000Pcs
型號
Item No. |

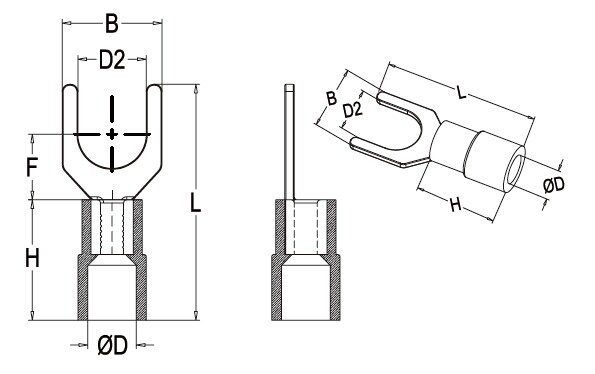

尺寸 DIMENSION |
顏色
color |
美制
螺栓號 |
螺栓口直徑 |
B |
L |
F |
H |
ΦD |
|
D2 |
mm |
mm |
mm |
mm |
mm |
|
YF1.25-3N |
#4 |
3.2mm |
5.7 |
22.2 |
6.5 |
11.0 |
4.0 |
紅 |
|
YFS1.25-3.5N |
#6 |
3.7mm |
5.7 |
22.2 |
6.5 |
|
YFL1.25-3.5N |
#6 |
3.7mm |
6.4 |
22.2 |
6.5 |
|
YFS1.25-4N |
#8 |
4.3mm |
6.4 |
22.2 |
6.5 |
|
YFM1.25-4N |
#8 |
4.3mm |
7.2 |
22.2 |
6.5 |
|
YFL1.25-4N |
#8 |
4.3mm |
8.1 |
22.2 |
6.5 |
|
YFS1.25-5N |
#10 |
5.3mm |
8.1 |
22.2 |
6.5 |
|
YFL1.25-5N |
#10 |
5.3mm |
9.5 |
22.2 |
6.5 |
|
YFS1.25-6N |
1/4 |
6.4mm |
9.5 |
22.2 |
6.5 |
|
YFL1.25-6N |
1/4 |
6.4mm |
12.0 |
28.2 |
11.0 |
導(dǎo)線截面：0.5～2.5mm2(AWG16～14) 最大電流：lmax＝27A.包裝1000PCS
Size of cable: 0.5-2.5mm2(American standar 16-14) Max.Current=27A.Package:1000Pcs
型號
Item No. |
尺寸 DIMENSION |
顏色
color |
美制
螺栓號 |
螺栓口直徑 |
B |
L |
F |
H |
ΦD |
|
D2 |
mm |
mm |
mm |
mm |
mm |
|
YF2-3N |
#4 |
3.2mm |
5.7 |
22.2 |
6.5 |
11.0 |
4.5 |
藍 |
|
YFS2-3.5N |
#6 |
3.7mm |
5.7 |
22.2 |
6.5 |
|
YFL2-3.5N |
#6 |
3.7mm |
6.0 |
22.2 |
6.5 |
|
YFS2-4N |
#8 |
4.3mm |
6.4 |
22.2 |
6.5 |
|
YFM2-4N |
#8 |
4.3mm |
7.2 |
22.2 |
6.5 |
|
YFL2-4N |
#8 |
4.3mm |
8.1 |
22.2 |
6.5 |
|
YFS2-5N |
#10 |
5.3mm |
8.1 |
22.2 |
6.5 |
|
YFL2-5N |
#10 |
5.3mm |
9.5 |
22.2 |
6.5 |
|
YFS2-6N |
1/4 |
6.4mm |
9.5 |
22.2 |
6.5 |
|
YFL2-6N |
1/4 |
6.4mm |
12.0 |
28.2 |
11.0 |
導(dǎo)線截面：4～6mm2(AWG12～10) 最大電流：lmax=37A.包裝500PCS
Size of cable: 4-6mm2(American standar 12-10) Max.Current=37A.Package:500Pcs
型號
Item No. |
尺寸 DIMENSION |
顏色
color |
美制
螺栓號 |
螺栓口直徑 |
B |
L |
F |
H |
ΦD |
|
D2 |
mm |
mm |
mm |
mm |
mm |
|
YF3.5-3N |
#4 |
3.2mm |
5.7 |
25.7 |
7.0 |
13.4 |
6.4 |
黑 |
|
YF3.5-4N |
#8 |
4.3mm |
8.0 |
25.7 |
7.0 |
|
YF3.5-5N |
#10 |
5.3mm |
5.3 |
25.7 |
7.0 |
|
YF3.5-6N |
1/4 |
6.5mm |
6.5 |
25.7 |
7.0 |
導(dǎo)線截面：4～6mm2(AWG12～10)最大電流：lmax=48A 包裝：500PCS
Insulation square：4～6mm2(AWG12～10)Max current：lmax=48A Package:1000Pcs
型號
Item No. |
尺寸 DIMENSION |
顏色
color |
美制
螺栓號 |
螺栓口直徑 |
B |
L |
F |
H |
ΦD |
|
D2 |
mm |
mm |
mm |
mm |
mm |
|
YFS5.5-3.5N |
#6 |
3.7mm |
7.2 |
24.4 |
7.5 |
13.4 |
6.4 |
黃 |
|
YF5.5-3.5N |
#6 |
3.7mm |
8.3 |
25.2 |
7.5 |
|
YFS5.5-4N |
#8 |
4.3mm |
8.3 |
26.9 |
7.5 |
|
YFL5.5-4N |
#8 |
4.3mm |
9.0 |
26.9 |
7.5 |
|
YF5.5-5N |
#10 |
5.3mm |
9.0 |
27.0 |
7.5 |
|
YFS5.5-6N |
1/4 |
6.5mm |
9.0 |
27.0 |
7.5 |
|
YFL5.5-6N |
1/4 |
6.5mm |
12.0 |
31.5 |
12.0 |
|
YF5.5-8N |
5/16 |
8.4mm |
14.0 |
30.5 |
10.5 |
