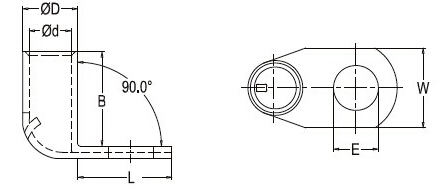

| 型號(hào) Item No. | 尺寸 DIMENSION | |||||
E | DΦ | dΦ | W | B | L1 | |
| LYF90-10/6 | 6.5 | 8 | 5 | 13 | 15 | 18 |
| LYF90-10/8 | 8.4 | 8 | 5 | 13.5 | 15 | 20.5 |
| LYF90-16/6 | 6.5 | 9 | 6 | 13 | 17 | 18 |
| LYF90-16/8 | 8.4 | 9 | 6 | 13.5 | 17 | 20.5 |
| LYF90-25/6 | 6.5 | 11 | 8 | 17 | 18.5 | 18 |
| LYF90-25/8 | 8.4 | 11 | 8 | 17 | 18.5 | 20.5 |
| LYF90-25/10 | 10.5 | 11 | 8 | 17 | 18.5 | 25 |
| LYF90-35/6 | 6.5 | 13 | 9 | 18 | 22.5 | 18 |
| LYF90-35/8 | 8.4 | 12 | 8.5 | 17 | 22.5 | 20.5 |
| LYF90-35/10 | 10.5 | 13 | 9 | 18 | 22.5 | 25 |
| LYF90-50/6 | 6.5 | 14.5 | 11 | 21 | 30.5 | 26 |
| LYF90-50/8 | 8.4 | 14.5 | 11 | 21 | 30.5 | 26 |
| LYF90-50/10 | 10.5 | 14.5 | 11 | 21 | 30.5 | 30 |
| LYF90-50/12 | 13 | 14.5 | 11 | 21 | 30.5 | 32 |
| LYF90-70/6 | 6.5 | 17 | 13 | 25 | 31.5 | 26 |
| LYF90-70/8 | 8.4 | 16.5 | 12 | 24 | 31.5 | 26 |
| LYF90-70/10 | 10.5 | 17 | 13 | 25 | 31.5 | 30 |
| LYF90-70/12 | 13 | 17 | 13 | 25 | 31.5 | 32 |
| LYF90-95/8 | 8.4 | 20 | 15 | 29 | 32.5 | 26 |
| LYF90-95/10 | 10.5 | 20 | 15 | 29 | 32.5 | 30 |
| LYF90-95/12 | 13 | 20 | 15 | 29 | 32.5 | 32 |
| LYF90-95/16 | 17 | 20 | 15 | 29 | 32.5 | 36 |
| LYF90-120/10 | 10.5 | 22 | 17 | 32 | 34.5 | 30 |
| LYF90-120/12 | 13 | 22 | 17 | 32 | 34.5 | 32 |
| LYF90-120/16 | 17 | 22 | 17 | 32 | 34.5 | 36 |
