    尼龍軟管

    當前位置：首頁 - 產品展示 - 尼龍軟管

  • 金屬快速軟管防水接頭 BGF
    • 發布時間：2019-03-14 瀏覽次數：55次 作者：023web

    金屬快速軟管防水接頭 BGF

    金屬接頭 ,快速接頭

    螺牙規格:公制螺牙(Metric).

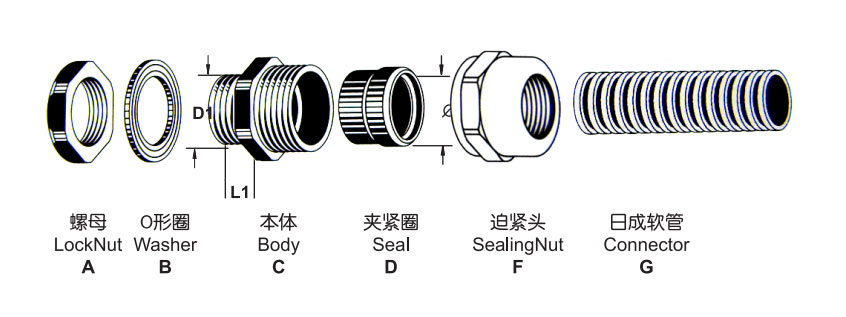

    產品材質:A.C.F部位均采用黃銅鍍鎳制成.B.D采用硅橡膠制成。
    產品認證:歐洲CE,ROHS.
    防護等級:在規定的卡口范圍內,并使用O形密封圈旋緊迫緊頭,達到IP68。
    產品特性:配套鎖緊式電纜接頭,防電線松動,內鎖扣和本體特殊設計,裝卸
    只需撥插無需工具,大大縮短了安裝時間. 夾緊電纜范圍大,抗拉
    力特強,可防水、防塵、抗鹽、耐酸堿、酒精、油、脂及一般溶劑.

    產品規格


    型號
    Item No .    		螺紋規格 Thread最大電纜Cable
    Range
    Φ
         		對應日成
    軟管型號
    Suit to RCCN
    conduit item no
    BG    		螺紋外徑
    Thread
    O.D.
    D1
         		機板口徑
    Panel
    Mounting
    Hole
         		螺紋長度
    Thread
    Length
    L1

    公制螺牙/Metric thread BGF-M
    BGF-M12(BG07)M12*1.55BG-071212-12.36
    BGF-M12(BG10)M12*1.55BG-101212-12.36
    BGF-M16(BG07)M16*1.58BG-071616-16.37
    BGF-M16(BG10)M16*1.58BG-101616-16.37
    BGF-M18(BG10)M18*1.58BG-101818-18.38
    BGF-M18(BG12)M18*1.510BG-121818-18.38
    BGF-M18(BG15)M18*1.513BG-151818-18.38
    BGF-M20(BG10)M20*1.58BG-102020-20.38
    BGF-M20(BG12)M20*1.510BG-122020-20.38
    BGF-M20(BG15)M20*1.513BG-152020-20.38
    BGF-M20(BG17)M20*1.515BG-172020-20.38
    BGF-M22(BG17)M22*1.515BG-172222-22.39
    BGF-M24(BG17)M24*1.515BG-172424-24.310
    BGF-M25(BG17)M25*1.515BG-172525-25.410
    BGF-M25(BG23)M25*1.521BG-232525-25.410
    BGF-M27(BG23)M27*1.521BG-232727-27.411
    BGF-M30(BG23)M30*1.521BG-233030-30.411
    BGF-M32(BG23)M32*1.521BG-233232-32.411
    BGF-M32(BG29)M32*1.525BG-293232-32.411
    BGF-M33(BG29)M33*1.525BG-293333-33.411
    BGF-M36(BG29)M36*1.525BG-293636-36.411
    BGF-M40(BG29)M40*1.525BG-294040-40.412
    BGF-M40(BG36)M40*1.533BG-364040-40.412
    BGF-M48(BG36)M48*2.033BG-364848-48.412
    BGF-M50(BG36)M50*1.533BG-365050-50.413
    BGF-M50(BG48)M50*1.545BG-485050-50.413
    BGF-M56(BG48)M56*2.045BG-485656-56.413
    BGF-M63(BG48)M63*1.545BG-486363-63.414

    型號
    Item No .    		螺紋規格
    Thread    		適應電纜
    Cable
    Range
         		對應日成
    軟管型號
    BG
         		螺紋外徑Thread
    O.D.
    D1    		機板口徑Panle
    Mounting
    Hole    		螺紋長度
    Thread
    Length
    L1
    德制螺牙BGF-P
    BGF-PG7(BG07)PG-73-6BG-0712.512.5-12.86
    BGF-PG9(BG07)PG-94-8BG-0715.215.2-15.87
    BGF-PG9(BG10)PG-94-8BG-1015.215.2-15.87
    BGF-PG11(BG10)PG-116-10BG-1018.618.6-18.98
    BGF-PG11(BG12)PG-116-10BG-1218.618.6-18.98
    BGF-PG13.5(BG12)PG-13.58-12BG-1220.420.4-20.78
    BGF-PG13.5(BG15)PG-13.58-12BG-1520.420.4-20.78
    BGF-PG13.5(BG17)PG-13.58-12BG-1720.420.4-20.78
    BGF-PG16(BG17)PG-1610-14BG-1722.522.5-22.89
    BGF-PG21(BG23)PG-2113-18BG-2328.328.3-28.711
    BGF-PG29(BG29)PG-2918-25BG-2937.037.0-37.411
    BGF-PG36(BG36)PG-3626-32BG-3647.047.0-47.413
    BGF-PG48(BG48)PG-4837-44BG-4859.359.3-59.714
    管螺牙BGF-G
    BGF-G1/4(BG07)G1/4''3-6BG-0713.213.2-13.46
    BGF-G3/8(BG10)G3/8''4-8BG-1016.516.5-17.17
    BGF-G1/2(BG12)G1/2''8-12BG-1221.321.0-21.38
    BGF-G1/2(BG15)G1/2''8-12BG-1521.321.0-21.38
    BGF-G1/2(BG17)G1/2''8-12BG-1721.321.0-21.38
    BGF-G3/4(BG17)G3/4''13-18BG-1726.626.5-26.611
    BGF-G1(BG23)G1''15-22BG-2333.433.2-33.411
    BGF-G1-1/4(BG29)G1 1/4''22-28BG-2942.141.9-42.112
    BGF-G1-1/2(BG36)G1 1/2''26-32BG-3647.847.8-48.013
    BGF-G2(BG48)G2''37-44BG-4859.659.6-60.114
    美制螺牙BGF-N
    BGF-NPT3/8（BG10）NPT3/8''4-8BG-1016.516.5-17.17
    BGF-NPT1/2（BG12）NPT1/2''8-12BG-1221.321.0-21.38
    BGF-NPT1/2（BG15）NPT1/2''8-12BG-1521.321.0-21.38
    BGF-NPT1/2（BG17）NPT1/2''8-12BG-1721.321.0-21.38
    BGF-NPT3/4（BG17）NPT3/4''13-18BG-1726.626.5-26.611
    BGF-NPT3/4（BG23）NPT3/4''13-18BG-2326.626.5-26.611
    BGF-NPT1（BG29）NPT1''15-22BG-2933.433.2-33.411



     下表型號為黃銅材質:

    型號
    Item No .    		螺紋規格Thread最大電纜
    Cable
    Range
    Φ    		對應日成
    軟管型號
    BG
         		對應日成
    軟管外徑
    BG
         		螺紋外徑Thread
    O.D.
    D1    		機板口徑Panle
    Mounting
    Hole    		螺紋長度Thread
    Length
    L1
    公制螺公制螺牙BGF-M
    BGF1-M12(BG07)M12*1.55BG-0710.01212-12.36
    BGF1-M12(BG10)M12*1.55BG-1013.01212-12.36
    BGF1-M16(BG07)M16*1.58BG-0710.01616-16.37
    BGF1-M16(BG10)M16*1.58BG-1013.01616-16.37
    BGF1-M18(BG10)M18*1.58BG-1013.01818-18.38
    BGF1-M18(BG12)M18*1.510BG-1215.81818-18.38
    BGF1-M18(BG15)M18*1.513BG-1518.51818-18.38
    BGF1-M20(BG10)M20*1.58BG-1013.02020-20.38
    BGF1-M20(BG12)M20*1.510BG-1215.82020-20.38
    BGF1-M20(BG15)M20*1.513BG-1518.52020-20.38
    BGF1-M20(BG17)M20*1.515BG-1721.22020-20.38
    BGF1-M22(BG17)M22*1.515BG-1721.22222-22.39
    BGF1-M24(BG17)M24*1.515BG-1721.22424-24.310
    BGF1-M25(BG17)M25*1.515BG-1721.22525-25.410
    BGF1-M25(BG23)M25*1.521BG-2328.52525-25.410
    BGF1-M27(BG23)M27*1.521BG-2328.52727-27.411
    BGF1-M30(BG23)M30*1.521BG-2328.53030-30.411
    BGF1-M32(BG23)M32*1.521BG-2328.53232-32.411
    BGF1-M32(BG29)M32*1.525BG-2934.53232-32.411
    BGF1-M33(BG29)M33*1.525BG-2934.53333-33.411
    BGF1-M36(BG29)M36*1.525BG-2934.53636-36.411
    BGF1-M40(BG29)M40*1.525BG-2934.54040-40.412
    BGF1-M40(BG36)M40*1.533BG-3642.54040-40.412
    BGF1-M48(BG36)M48*2.033BG-3642.54848-48.412
    BGF1-M50(BG36)M50*1.533BG-3642.55050-50.413
    BGF1-M50(BG38)M50*1.545BG-3854.55050-50.413
    BGF1-M56(BG38)M56*2.045BG-3842.55656-56.413
    BGF1-M63(BG38)M63*1.545BG-3854.56363-63.414


    型號
    Item No .    		螺紋規格Thread適應電纜
    Cable
    Range
         		對應日成
    軟管型號
    BG
         		對應日成
    軟管外徑
    BG
         		螺紋外徑Thread
    O.D.
    D1    		機板口徑Panle
    Mounting
    Hole    		螺紋長度Thread
    Length
    L1
    德制螺牙BGF-P
    BGF1-PG7(BG07)PG-73-6BG-0710.012.512.5-12.86
    BGF1-PG9(BG07)PG-94-8BG-0710.015.215.2-15.87
    BGF1-PG9(BG10)PG-94-8BG-1013.015.215.2-15.87
    BGF1-PG11(BG10)PG-116-10BG-1013.018.618.6-18.98
    BGF1-PG11(BG12)PG-116-10BG-1215.818.618.6-18.98
    BGF1-PG13.5(BG12)PG-13.58-12BG-1215.820.420.4-20.78
    BGF1-PG13.5(BG15)PG-13.58-12BG-1518.520.420.4-20.78
    BGF1-PG13.5(BG17)PG-13.58-12BG-1721.220.420.4-20.78
    BGF1-PG16(BG17)PG-1610-14BG-1721.222.522.5-22.89
    BGF1-PG21(BG23)PG-2113-18BG-2328.528.328.3-28.711
    BGF1-PG29(BG29)PG-2918-25BG-2934.537.037.0-37.411
    BGF1-PG36(BG36)PG-3626-32BG-3642.547.047.0-47.413
    BGF1-PG48(BG48)PG-4837-44BG-4854.559.359.3-59.714
    管螺牙BGF-G
    BGF1-G1/4(BG07)G1/4''3-6BG-0710.013.213.2-13.46
    BGF1-G3/8(BG10)G3/8''4-8BG-1013.016.516.5-17.17
    BGF1-G1/2(BG12)G1/2''8-12BG-1215.821.321.0-21.38
    BGF1-G1/2(BG15)G1/2''8-12BG-1518.521.321.0-21.38
    BGF1-G1/2(BG17)G1/2''8-12BG-1721.221.321.0-21.38
    BGF1-G3/4(BG17)G3/4''13-18BG-1721.226.626.5-26.611
    BGF1-G1(BG23)G1''15-22BG-2328.533.433.2-33.411
    BGF1-G1-1/4(BG29)G1 1/4''22-28BG-2934.542.141.9-42.112
    BGF1-G1-1/2(BG36)G1 1/2''26-32BG-3642.547.847.8-48.013
    BGF1-G2(BG48)G2''37-44BG-4854.559.659.6-60.114
    美制螺牙BGF-N
    BGF1-NPT3/8（BG10）NPT3/8''4-8BG-1010.016.516.5-17.17
    BGF1-NPT1/2（BG12）NPT1/2''8-12BG-1215.821.321.0-21.38
    BGF1-NPT1/2（BG15）NPT1/2''8-12BG-1518.521.321.0-21.38
    BGF1-NPT1/2（BG17）NPT1/2''8-12BG-1721.221.321.0-21.38
    BGF1-NPT3/4（BG17）NPT3/4''13-18BG-1721.226.626.5-26.611
    BGF1-NPT3/4（BG23）NPT3/4''13-18BG-2328.526.626.5-26.611
    BGF1-NPT1（BG29）NPT1''15-22BG-2934.533.433.2-33.411
