三通軟管接頭 BGY
發布時間：2019-03-14 瀏覽次數：32次 作者：023web
三通軟管接頭 BGY
三通接頭,軟管接頭
產品材質: 采用橡膠原料制成,
顏色種類: 黑色
工作溫度: -20°C至85°C

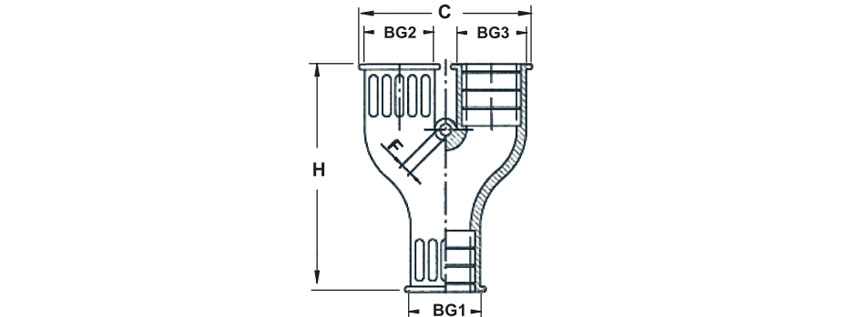

型號Item No. | 對應軟管
Conduit item no
BG2×BG3/BG1 | 適配軟管
Outer dia.
BG2 | 適配軟管
Outer dia.
BG3 | 適配軟管
Outer dia.
BG1 | 固定孔
Fix hole
F | 長度
length
H | 寬度
Width
C | 包裝
Std.Pkg.
pcs |
| BGY2×10.0/13.0B | 2×10.0/13.0 | BG-07 | BG-07 | BG-10 | 4 | 63.0 | 36.0 | 10PCS |
| BGY2×13.0/15.8B | 2×13.0/15.8 | BG-10 | BG-10 | BG-12 | 4 | 66.0 | 45.0 |
| BGY2×15.8/21.2B | 2×15.8/21.2 | BG-12 | BG-12 | BG-17 | 4 | 75.0 | 52.0 |
| BGY2×15.8/28.5B | 2×15.8/28.5 | BG-12 | BG-12 | BG-23 | 4 | 75.0 | 52.0 |
| BGY2×21.2/28.5B | 2×21.2/28.5 | BG-17 | BG-17 | BG-23 | 4 | 68.0 | 60.5 |
| BGY2×28.5/34.5B | 2×28.5/34.5 | BG-23 | BG-23 | BG-29 | 4 | 86.0 | 77.0 |
| BGY2×34.5/42.5B | 2×34.5/42.5 | BG-29 | BG-29 | BG-36 | 4 | 98.5 | 89.0 |
| BGY2×42.5/54.5B | 2×42.5/54.5 | BG-36 | BG-36 | BG-48 | 4 | 116.0 | 109.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
