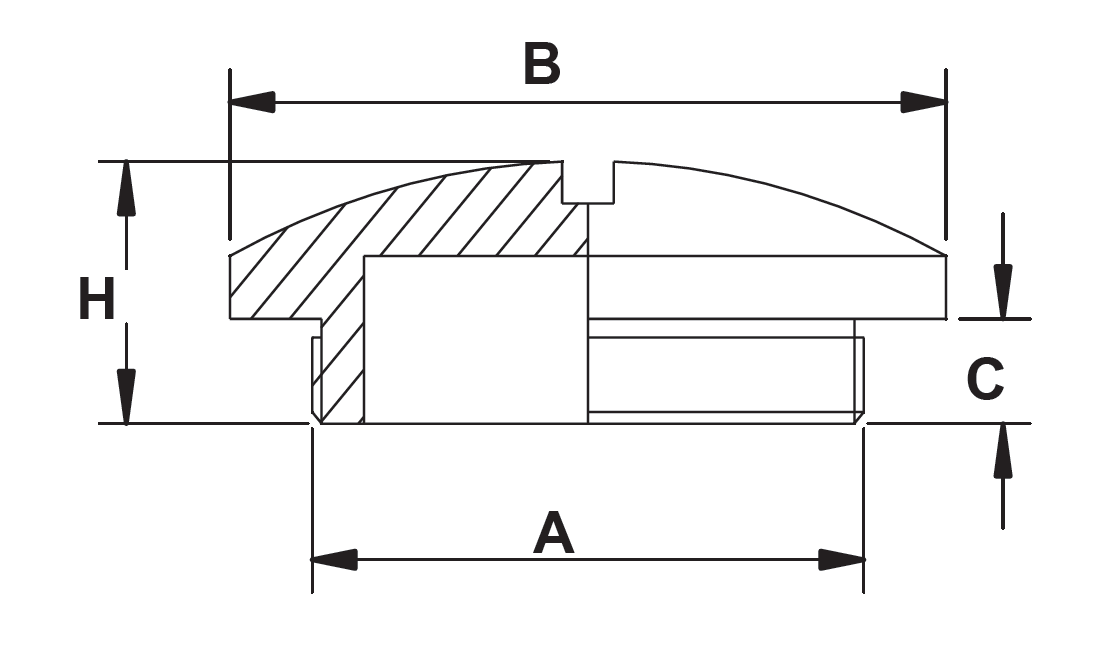

| 型號Item No. | 螺牙規格 Thread | 螺紋外徑 Thread O.D. A | 機板開孔 Panel Mounting Hole | 螺紋長度 Thread Length C | 接合長度 Thread Length H | 外圓尺寸 size B | 包裝 Std.Pkg. pcs | |
| 灰白色White | 黑色Black | |||||||
| 公制標準 SP-M | ||||||||
| SP-M12W | SP-M12B | M12*1.5 | 12 | 12-12.3 | 9 | 12.5 | 15 | 100PCS |
| SP-M16W | SP-M16B | M16*1.5 | 16 | 16-16.3 | 9 | 13 | 19 | |
| SP-M18W | SP-M18B | M18*1.5 | 18 | 18-18.3 | 9 | 13 | 22 | |
| SP-M20W | SP-M20B | M20*1.5 | 20 | 20-20.3 | 9 | 13 | 25 | |
| SP-M22W | SP-M22B | M22*1.5 | 22 | 22-22.3 | 10.5 | 15 | 27 | |
| SP-M25W | SP-M25 | M25*1.5 | 25 | 25-25.3 | 10.5 | 15.5 | 30 | 50PCS |
| SP-M27W | SP-M27B | M27*1.5 | 27 | 27-27.3 | 10.5 | 15.5 | 33 | |
| SP-M32W | SP-M32B | M32*1.5 | 32 | 32-32.3 | 10.5 | 16 | 38 | |
| SP-M40W | SP-M40B | M40*1.5 | 40 | 40-40.3 | 11.5 | 16 | 46 | 30PCS |
| SP-M50W | SP-M50B | M50*1.5 | 50 | 50-50.3 | 13.5 | 18 | 56 | |
| SP-M63W | SP-M63B | M63*1.5 | 63 | 63-63.3 | 14 | 19 | 68 | |
| 德制標準 NSP-PG | ||||||||
| SP-PG7W | SP-PG7B | PG 7 | 12.5 | 12.5-12.8 | 9 | 12.2 | 15 | 100PCS |
| SP-PG9W | SP-PG9B | PG 9 | 15.2 | 15.2-15.8 | 9 | 13 | 19 | |
| SP-PG11W | SP-PG11B | PG 11 | 18.6 | 18.6-18.9 | 9 | 13 | 22 | |
| SP-PG13.5W | SP-PG13.5B | PG 13.5 | 20.4 | 20.4-20.7 | 9 | 13 | 25 | |
| SP-PG16W | SP-PG16B | PG 16 | 22.5 | 22.5-22.8 | 10.5 | 15 | 27 | |
| SP-PG21W | SP-PG21B | PG 21 | 28.3 | 28.3-28.7 | 10.5 | 15 | 33 | 30PCS |
| SP-PG29W | SP-PG29B | PG 29 | 37.0 | 37.0-37.4 | 11.5 | 16 | 44 | |
| SP-PG36W | SP-PG36B | PG 36 | 47.0 | 47.0-47.4 | 13.5 | 18 | 55 | |
| SP-PG42W | SP-PG42B | PG 42 | 54.0 | 54.0-54.4 | 13.5 | 18.5 | 62 | |
| SP-PG48W | SP-PG48B | PG 48 | 59.3 | 59.3-59.7 | 14.5 | 19.5 | 68 | |
